Back in 2022-2023, I encountered an interesting bug that caused unreclaimable kernel memory growth on Ubuntu servers running containerized workloads. The key word here is unreclaimable — this memory cannot be freed without rebooting the kernel. No echo 3 > /proc/sys/vm/drop_caches, no service restart, no container reboot. Only a full host node reboot releases it.

The Configuration

A systemd unit that restarts on failure:

[Unit]
After=network-online.target
Wants=network-online.target
StartLimitIntervalSec=0

[Service]
Type=exec
DynamicUser=true

ExecStart=bash -c 'echo bug; exit 1'

ProtectSystem=strict
ProtectHome=yes
ProtectKernelModules=yes
ProtectKernelLogs=yes
ProtectControlGroups=yes
ProtectClock=yes
PrivateDevices=yes
PrivateTmp=yes

RestartSec=1ms
Restart=always

[Install]
WantedBy=multi-user.target

The daemon would exit if a required network interface or config file wasn’t present, then restart. During network issues or misconfigurations, this created restart loops — accumulating over days and weeks.

Observed Behavior

  • SUnreclaim in /proc/meminfo growing slowly but steadily
  • Eventually OOM kills across unrelated processes
  • Container restarts did nothing — the memory is in host kernel space
  • Only host node reboot reclaimed the memory

This last point is critical for containerized environments (LXC/LXD/Proxmox). The kernel is shared between all containers. When unreclaimable slab grows, you cannot fix it by restarting the affected container. You must reboot the entire host — taking down all workloads on that node.

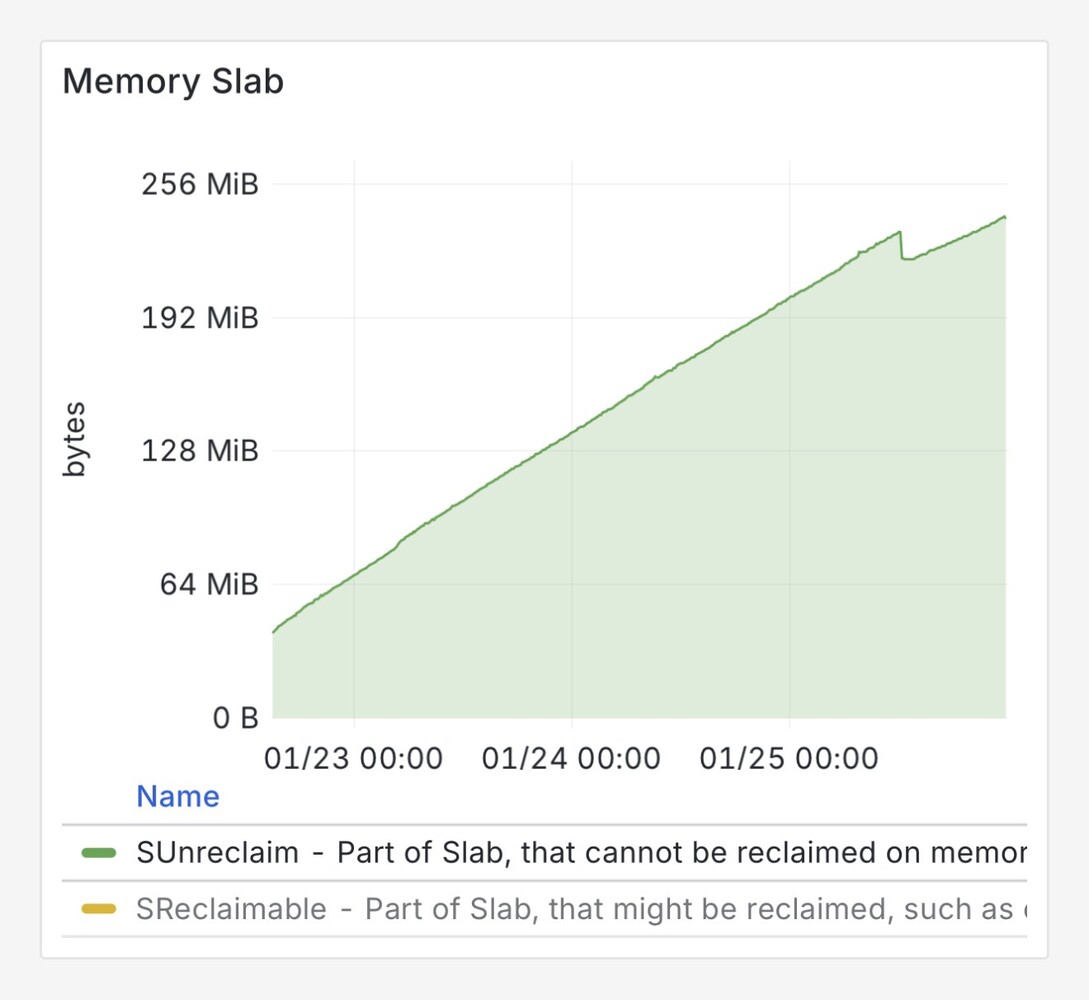

SUnreclaim growth chart

SUnreclaim stable growing ~60mb/day — seems to slow, but multiplies fast on multi-container envs

Root Cause: Cgroup Memory Accounting Bug

The Linux kernel has a bug in cgroup memory controller. When systemd creates and destroys cgroups:

  • mem_cgroup_css_alloc() allocates kernel structures for each new cgroup
  • mem_cgroup_css_offline() is called when cgroup is removed
  • But mem_cgroup_css_free() is NOT always called

The percpu_ref reference counting mechanism fails to fully release the structures. These allocations go into slab_unreclaimable — kernel memory that cannot be reclaimed by any means except reboot.

ByteDance engineers documented this with kprobe analysis: alloc/offline counts matched, but alloc/free counts diverged over time. Each restart cycle leaked a small amount. Over days of normal operation with occasional restart loops, this accumulated into gigabytes.

I confirmed the bug by temporarily setting RestartSec=1ms — the rapid restarts made SUnreclaim grow visibly in real-time, which proved the correlation.

Why Type=exec Amplifies the Problem

Type=simple:

  • Direct fork of the target process
  • Single cgroup creation per service start

Type=exec:

  • Spawns systemd-executor first
  • Executor configures namespaces, sandboxing, cgroup hierarchy
  • Then exec’s the target binary
  • Multiple cgroup operations per restart cycle

Switching from Type=exec to Type=simple reduced cgroup churn significantly, which slowed the leak enough to be manageable.

The Fix

Just set Type=simple is mostly enough. Also set RestartSec around ~10-15s.

And, obviously, fix your service not to fail so often 😉

Alternative Mitigations

  • Upgrade to Ubuntu 24.04+ with latest kernel updates
  • Boot parameter cgroup.memory=nokmem disables kernel memory accounting
  • Disable memory accounting for specific units: MemoryAccounting=no

Affected Versions

I observed this bug on:

  • Ubuntu 18.04 (kernel 4.15, cgroups v1)
  • Ubuntu 20.04 (kernel 5.4, cgroups v2)

The bug affects both cgroups v1 and v2. Full fixes arrived with later kernel updates in 22.04 (5.15+) or through backported patches.

Monitoring

# Unreclaimable slab — this number should be stable over time
watch -n 60 'grep SUnreclaim /proc/meminfo'

# If SUnreclaim keeps growing, check which slab caches are responsible
slabtop -o | head -20

# Memory cgroup count (growing = potential leak)
cat /proc/cgroups | grep memory

# Find services with frequent restarts
journalctl --since "24 hours ago" | grep -E "Started.*\.service" | sort | uniq -c | sort -rn | head -10

Kernel/Systemd Issues:

Kubernetes/Container Ecosystem:

Technical Analysis:

Summary

The combination of:

  • Kernel bug in cgroup memory accounting
  • Type=exec overhead (multiple cgroup operations per start)
  • Services that restart frequently over time
  • Containerized environment (shared kernel)

Creates a scenario where unreclaimable kernel memory grows until OOM. The debugging path is non-obvious — the leak is in kernel space, and container restarts provide no relief. You only discover it when the host goes down.

If you’re running Ubuntu 18.04/20.04 LTS with services that restart frequently — monitor your SUnreclaim and consider switching to Type=simple.
